韩国FOOTMASTER福马脚轮 |
|
|
|
|
 |
 |
设计说明 |
每个允许承载Load capacity/pce |
750kg(1,650Ibs)
|
| 四个允许承载 (Recommended load/4 pcs)< |
1,500kg(3,300Ibs)
|
| 净重(Net weight) |

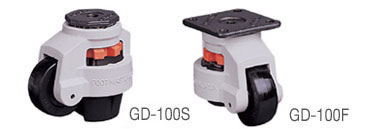

S-type (丝杆型)
|
1.6kg(3.6Ibs) |
F-type(底板型)
|
1.9kg(4.2Ibs) |
使用温度(Temperature range) |
-10 ~ +90℃
(+14~+194℉)
|
|
|

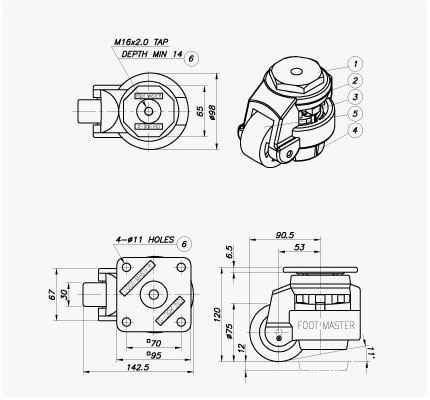

使用材料说明 |
| ①底板(Top plate) |
F-type : Pressed steel / S-type : Forged steel |
| ②支架(Frame) |
Aluminum diecasted |
| ③ 调节轮(Handle) |
尼龙-6(Nylon-6) |
| ④ 支撑垫(Leveling pad) |
橡胶(聚氨脂/NBR(Polyurethane, Anti-static polyurethane available by order) |
| ⑤ 轮子(Wheel) |
尼龙-6(Nylon-6) |
| ⑥ 固定螺栓(Mounting bolt) |
S-type(丝杆型) |
M16×2.0P |
F-type (底板型) |
4-M10×1.5P |
| ⑦ 表面处理 (Surface treatment) |
粉喷及镀锌(Powder coated & Zinc galvanized ) |
|
|
|
|
